Installing an Azek or Cedar Lantern Post Sleeve
To install a lantern post sleeve, you'll need to purchase the following items locally:
- A galvanized steel pipe (foundation post)
- 2 bags of Quikrete (concrete)
- Flathead screws
Step 1: Set Up the Foundation Post
- Secure the galvanized steel pipe (foundation post) approximately 36" into the ground using 2 bags of Quikrete. Ensure it is stable and level.
Step 2: Install the Lantern Post Sleeve
- Slide the lantern post sleeve over the foundation post.
- Drill pilot holes to avoid splitting and secure the sleeve in place using flathead screws.
Foundation Post Size Guide:
- For 6x6 Cedar Fluted Lantern Post Sleeve: Use a galvanized steel pipe with an outer diameter up to 3”. The sleeve has a 3-1/8" x 3-1/8" inside opening.
- For 6x6 Azek Post Sleeve: Use a galvanized steel pipe with an outer diameter up to 3-5/8"). The sleeve has a 3-3/4” x 3-3/4” inside opening.
- For 8x8 Azek Post Sleeve: Use a galvanized steel pipe with an outer diameter of up to 5-1/4". The sleeve has a 5-1/2" x 5-1/2" inside opening.
- For 8x8 Cedar Fluted or Raised Panel Lantern Post Sleeve: Use a galvanized steel pipe with an outer diameter of up to 3-7/8". The sleeve has a 4" x 4" inside opening.

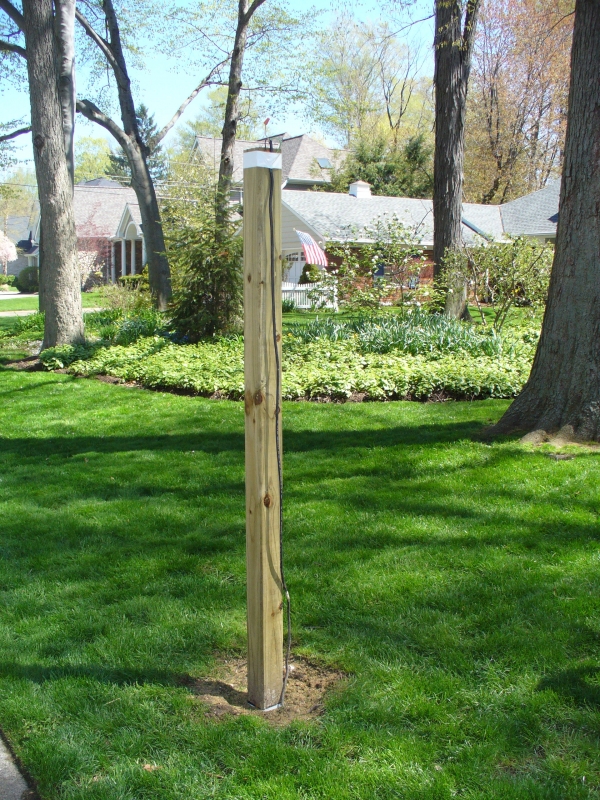

Alternative Foundation Post: You can opt for a pressure-treated wood post for 6x6 or 8x8 Azek and 8x8 cedar post sleeves. Refer to the outer dimensions listed above.

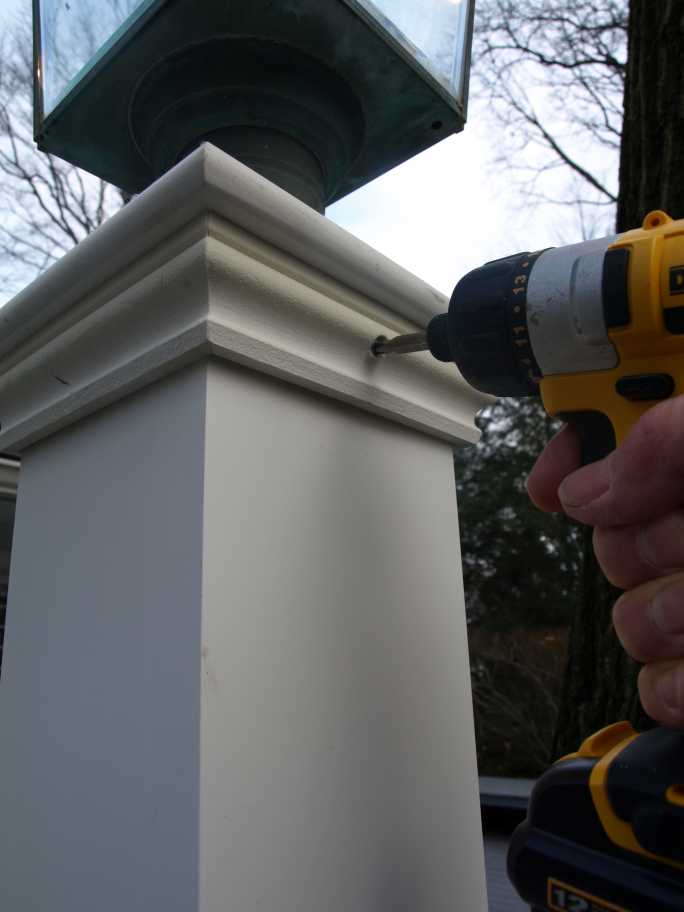

Step 3: Attach the Finial Post Cap
- Screw the lantern receptacle post cap in place instead of gluing it. This allows for easy removal if necessary.

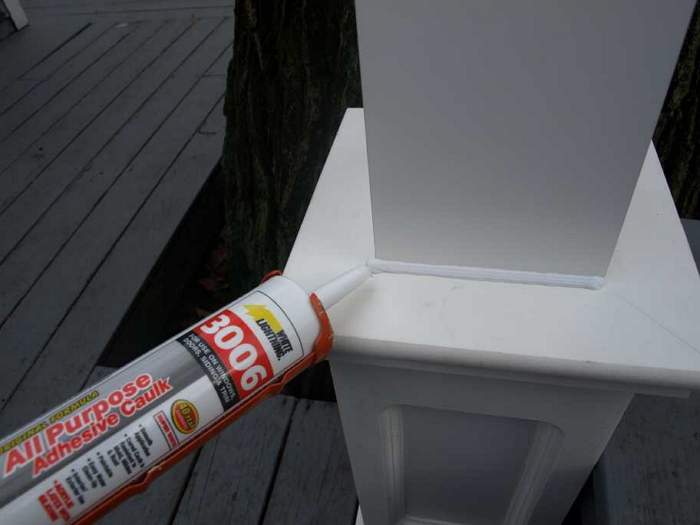

Step 4: Seal the Base
- Use quality caulk to seal the base of the post. This prevents moisture and pests from entering.
- Apply a coat of acrylic latex paint to protect and enhance the finish.
